Düsen-Schlick GmbH has ranked among the world-leading nozzle manufacturers from the very beginning. Development, production and service all from one source guarantee the best solutions without time delays. Trend-setting patents demonstrate our success. Personal customer contact and the high level of vertical integration – see know-how section for details – are other good reasons to choose Schlick.

In spray technology, the nozzle is the HEART of any piece of equipment. It’s no wonder then that Schlick precision nozzles have to conform to the highest demands. Cost-effectiveness begins with the integrated assurance and long-term process reliability. We don’t make any detours to get to the best solution. Through the flexible business structure, flat hierarchies and short decision-making processes, we have also become the market specialists for individual and small series – a clear distinction from the competition. Our precision manufacturing and increasing development competence assist in securing our customers’ success.

For more than 100 years, Schlick has followed the 100%-Made-in-Germany ideas for its customers – after sale guarantee assured.



Düsen-Schlick GmbH
Hutstraße 4
96253 Untersiemau / Coburg
Germany

T: +49 (0) 9565/94 81-0
F: +49 (0) 9565/28 70
http://www.duesen-schlick.de | http://www.myschlick.com/

Product Anti-Bearding Technology

Series 930 S35

Spray pattern: Oval flat-jet
Spray angle: 10° – 60°
Orifices: 0.5 – 2.2 mm
Capacity: 50 – 180 g/min (for coating applications)
Features: New-patented air cap– anti-bearding cap, rounded form prevents build-up of product residue on the air cap.

Separate connections for atomising air and pattern air (to position flat spray nozzle)
Nozzle for production facilities. Innovative product design for perfect spraying.



  • No product build-up thanks to the SCHLICK Anti-Bearding-Cap (ABC)
  • Perfect up- and downscaling for perfect production processes
  • Optimal homogenous and reproducible spray results
  • GMP design: Simple construction (7 individual parts + 4 O rings)
  • Cleaning needle to standard
  • Available with liquid return system
  • Extremely easy to adjust for maximum flexibility
  • Materials with surface quality of Ra < 0.8, which are FDA compliant 1.4404 (AISI 316L)

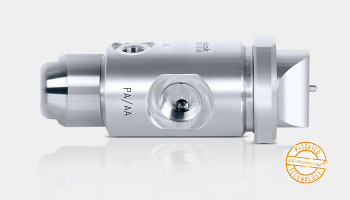

Series 930 S45

Spray pattern: Oval flat-jet
Spray angle: 10° – 60°
Orifices: 0.5 – 2.2 mm
Capacity: 50 – 180 g/min (for coating applications)
Drum size: 19“ and bigger
Features: New-patented air cap– anti-bearding cap (ABC-Technology®), rounded form prevents build-up of product residue on the air cap.
Joint connection for atomising air and pattern air
Nozzle for production facilities. Innovative product design for perfect spraying.




  • Specially designed for facilities with only one air supply
  • No product build-up thanks to the SCHLICK Anti-Bearding-Cap (ABC)
  • Perfect up- and downscaling for perfect production processes
  • Optimal homogenous and reproducible spray results
  • GMP design: Simple construction (7 individual parts + 4 O rings)
  • Cleaning needle to standard
  • Available with liquid return system
  • Extremely easy to adjust for maximum flexibility
  • Materials with surface quality of Ra < 0.8, which are FDA compliant 1.4404 (AISI 316L)

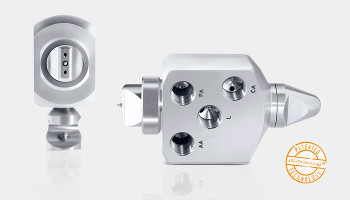

Series 970 S75

Spray pattern : oval flat spray
Spray angle : 10° – 60°
Orifices : 0.5 – 1.2 mm
Capacity : 10 – 50 g/min (for coating applications)
Drum size : 12“ – 19“
Features : New-patented air cap– anti-bearding cap, rounded form prevents build-up of product residue on the air cap. Joint connection for atomising air and pattern air. Nozzle for production facilities. Innovative product design for perfect spraying.




  • No product build-up thanks to the SCHLICK Anti-Bearding-Cap (ABC)
  • Perfect up- and downscaling for perfect production processes
  • Optimal homogenous and reproducible spray results
  • GMP design: Simple construction (7 individual parts + 4 O rings)
  • Cleaning needle to standard
  • Available with liquid return system
  • Extremely easy to adjust for maximum flexibility
  • Materials with surface quality of Ra < 0.8, which are FDA compliant 1.4404 (AISI 316L)

Series 930 Pro ABC

Spray pattern : oval flat spray
Spray angle : approx. 70°
Orifices : 0.5 – 2.8 mm
Capacity : 0.05 – 3.0 l/min
Features: New-patented air cap– anti-bearding cap (ABC-Technology®), rounded form prevents build-up of product residue on the air cap. Shared connection for atomising air and pattern air pneumatic. On / off control with cleaning needle.
Innovative product design for perfect spraying.




  • No product build-up thanks to the SCHLICK Anti-Bearding-Cap (ABC)
  • Optimal homogenous and reproducible spray results
  • Design with only seven individual parts and O rings
  • Pneumatic up/down control with cleaning needle
  • Simple installation/de-installation for cleaning or servicing by hand
  • Material: stainless steel 1.4305 (AISI 316L) or brass (others on request)
  • Material with surface quality of Ra < 0.8
